The Context

PMC is a composite material, that was introduced to the public in 1990 by Mitsubishi Materials. The principle is that fine metal particles can be held together with an organic binder, so that when it is fired for a set duration, the binder burns away, and the metal particles can sinter forming a solid shape.

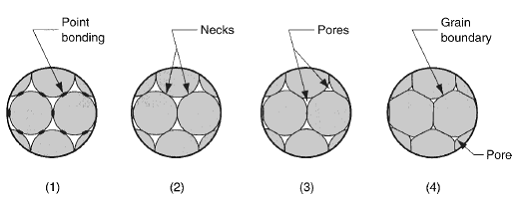

Sintering process, causing small particles to melt and coalesce

Source: MechScience

The ingredients are:

Precious Metal Powder (70-90%)
A variety of metal powders can be used such as gold, silver and copper, however these are imperceptible to the eye, with particle size <200um.

Ethyl/Methyl Based Cellulose Binder with Water (0.8-8%)
The cellulose binder that holds the particles together, and allows for forming and moulding of them, whilst being comprised of organic matter so that it can burn away cleanly. Ratios typically vary from 5:95 to 30:70 cellulose to water.

Alykly Benzene Sodium Sulphate (0.03-0.3%)
This chemical known as Polysoap, is used as a surface active agent, breaking down any solid substances that may form as a reaction from the water and cellulose

Oil (0.03-3%)
Acting as a lubricant, the oil helps with the handability of the clay, and prevents adhesion to both packaging, and any moulds used in the forming process.

The benefit of this process is that it's far easier to mould a clay like material due to the malleability of it compared to working actual metal. This allows for the formation of complex geometries in clay through simply hand moulding it or even 3D printing, then processing it into a metal object, that would otherwise have been too difficult to make. A common application would be to make jewellry by hand, and then fire it in a small kiln or use a blow torch. It would also typically be hardened by passing through a tumblr, in order to improve scratch resistance if the pieces were worn.

The Hypothesis

From discussing with users and representatives of the materials, there was a belief that some firing times/temperatures were not intensive enough to sinter the metals fully, which resulted in breakages in pieces, whilst the higher temperatures caused too much shrinkage.

I began to plan out the project, and decide the variables that would allow for the understanding of these conditions:

●The temperature (600, 700, 800 and 900 degrees celsius)
●The firing times (10, 45 and 90 minutes)
●The heating method (blow torch vs kiln)
●The post-processing (tumbling to harden the surface vs virgin)

Samples would have their dimensions and weight recored pre- and post-firing, in order to determine relative shrinkage.

The primary method of testing was the Vickers Hardness Test, the process of indenting a sample with a controlled force using an diamond tipped point, and then measuring the width and height of the mark made. These dimensions could then be translated into the surface hardness of the material.

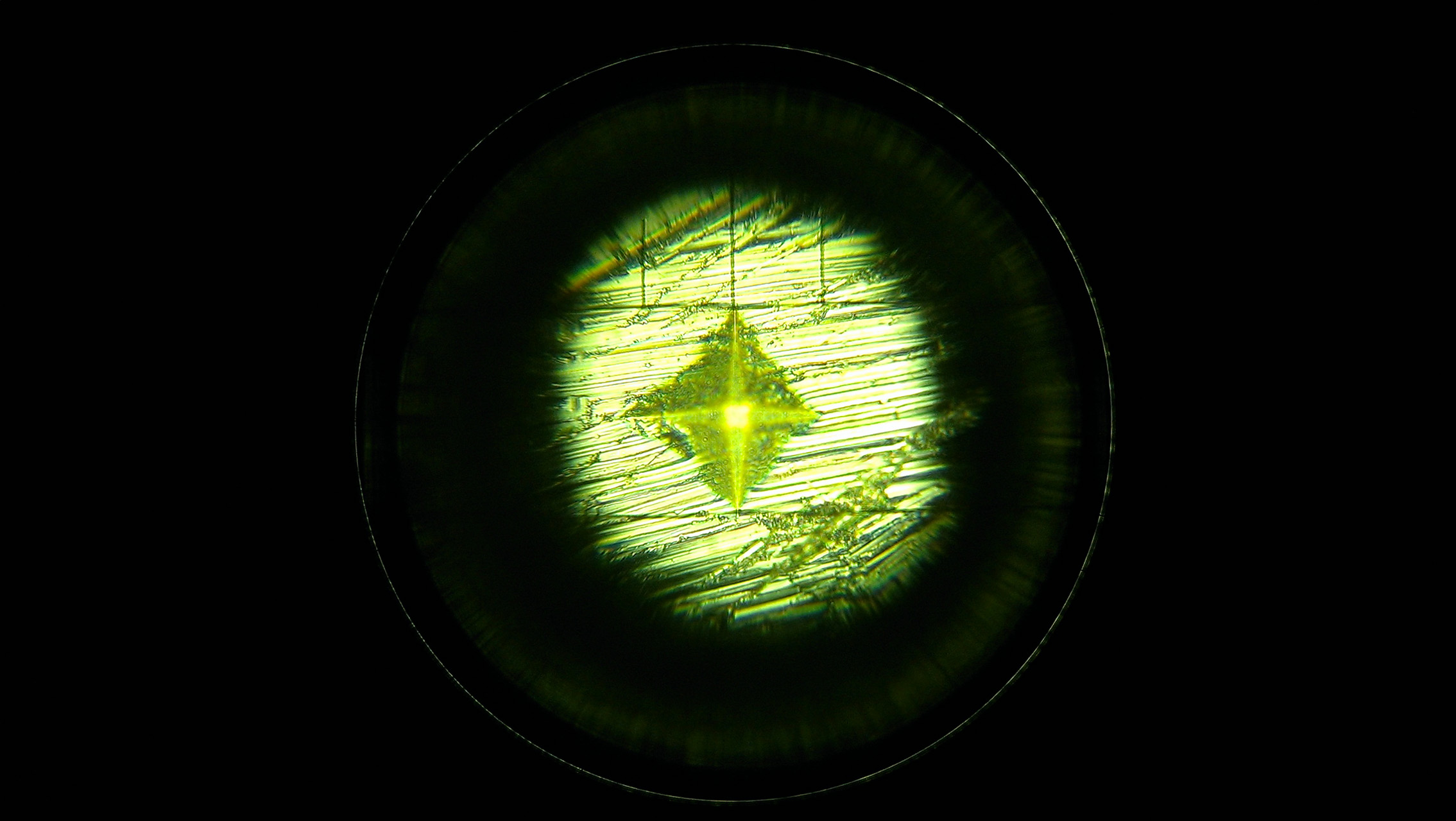

Indentation on the sample surface seen through a microscope

A set of 9 samples would be fired at each temperature and time combination (12 different firing processes). A third of the batch would undergoe tumbling for 2 hours, whilst another third would be tumbled for 4 hours. Then The entire batch would be tested for their surface hardness.

A subset of samples would be fired using a blow torch under typical conditions, to understand how it can vary to a more uniform kiln firing.

Both these methods had their temperature recorded using a thermocouple to guage the typical temperature a torch goes to, and to ensure that the kiln's monitor was reporting accurately.

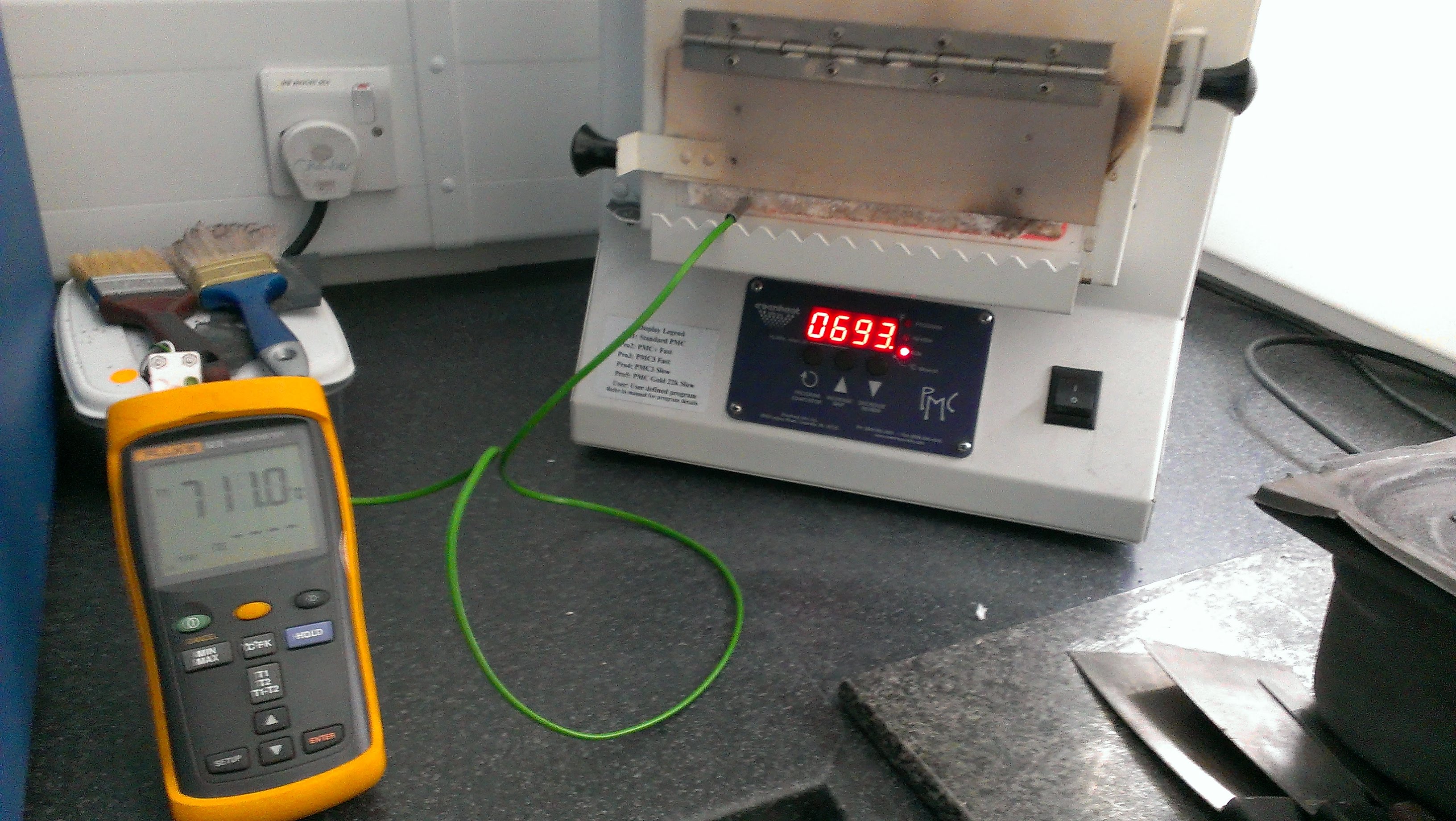

Monitoring the kiln temperature, showing an imbalance in the reading vs actual temperature

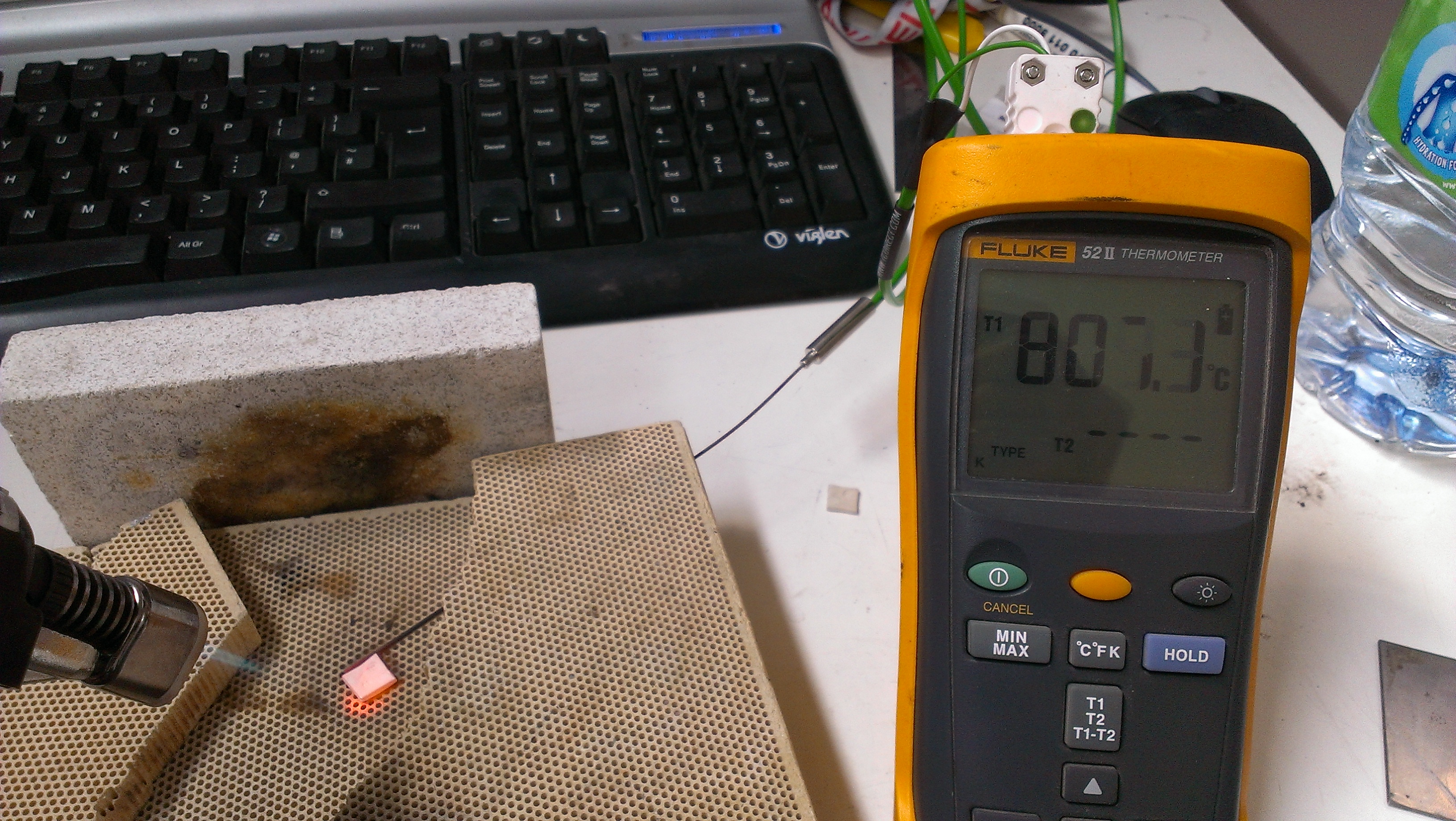

Checking firing temperature under a blowtorch

Scanning Electron Microscopy (SEM) would then be used to take microscopic images of the fire material, in order to visually confirm results and theories from the hardness tests.

The most commonly sold product was the Sterling Silver PMC, a favourite to make jewelry out of, and so was selected as the material for the experiment from the range. Small 10 x 10 x 3 mm sample squares were made, each with a set of markings on them to be able to identify which process they had undergone e.g. Sample 2 of the batch that was fired under 700^oc for 45 min and then hardened.

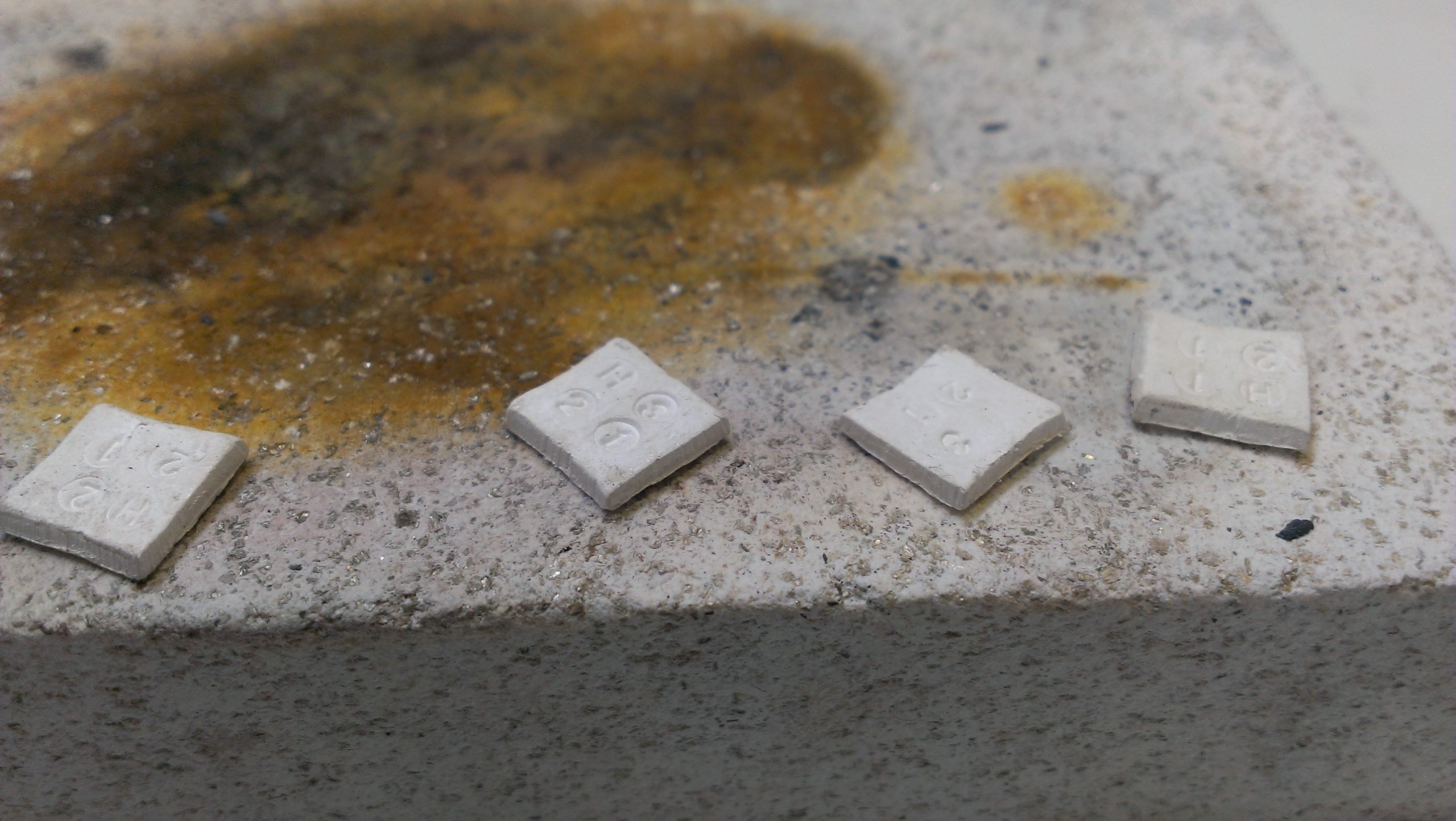

Various samples post firing, with their respective markings

The Results

Following the creation and testing of ~300 samples, with over 1500 datapoints, I could begin to analyse the data:

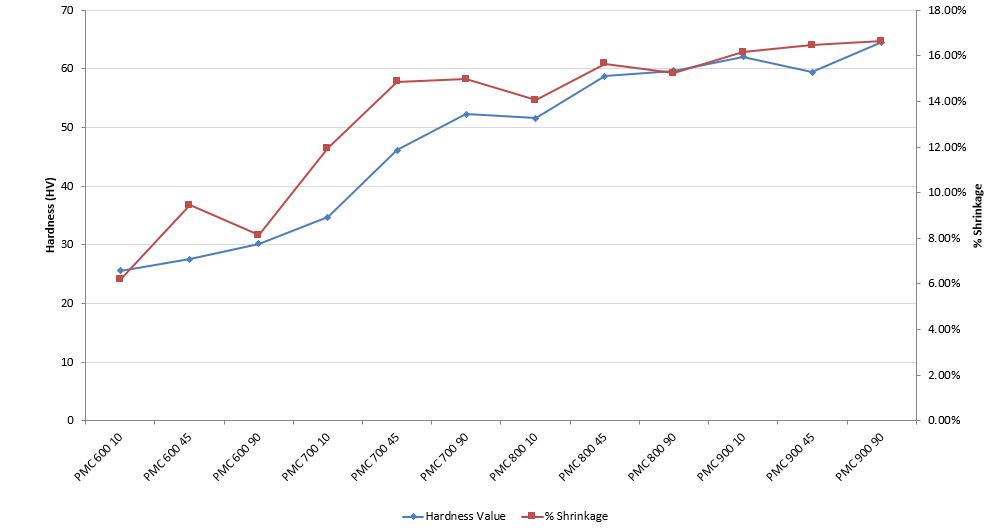

Comparison of Shrinkage and Hardness

The results fit with the hypothesis, that as you increase the intensity of firing, by increasing temperature primarily, and then firing times, there is an increase in the surface hardness, as well as the shrinkage. The principle that some firing times were simply not enough to sinter the material effectively was proven through the SEM scans, as shown below with a sample fired at 600^oc for 10 minutes:

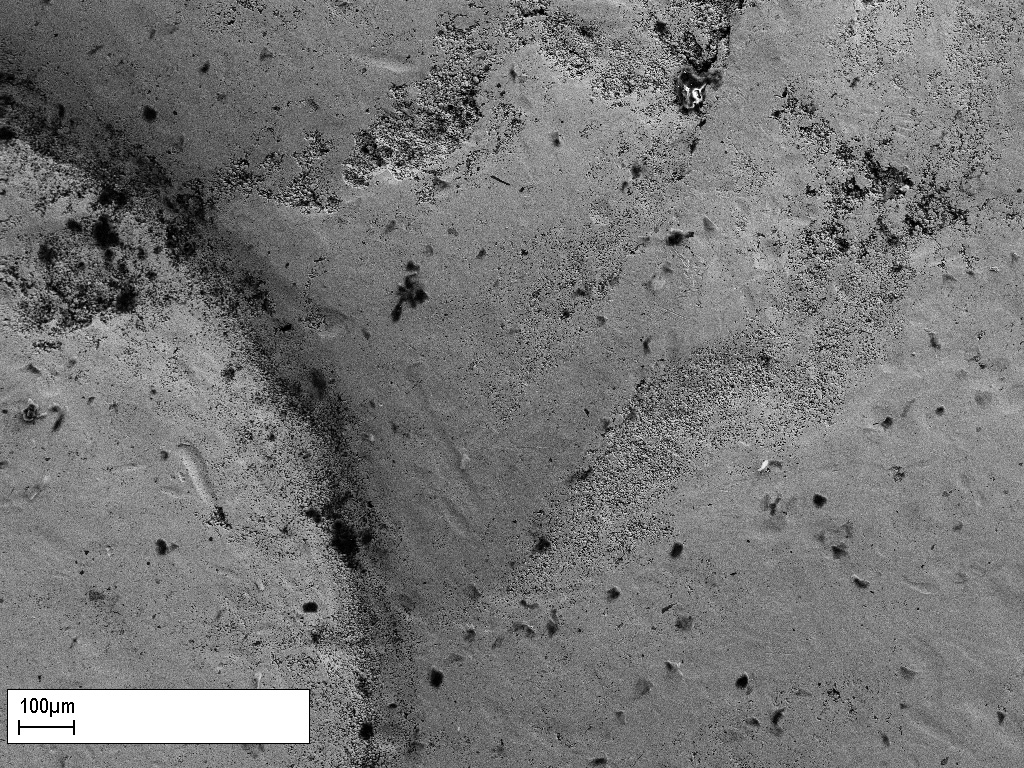

Surface Scan of Sample Fired at 600^oc for 10 minutes (x200 magnifcation)

The surface scan shows a mostly sintered surface, however there are multiple areas across it that have some porosity still from the particles. These gaps can be clearly seen in the increased magnification below:

Surface Scan of Sample Fired at 600^oc for 10 minutes (x10000 magnifcation)

On the other side of the spectrum, the increased times and temperature results in a much more homogeneous material, as shown below with a sample fired at 900^oc for 90 minutes:

Surface Scan of Sample Fired at 900^oc for 90 minutes (x200 magnifcation)

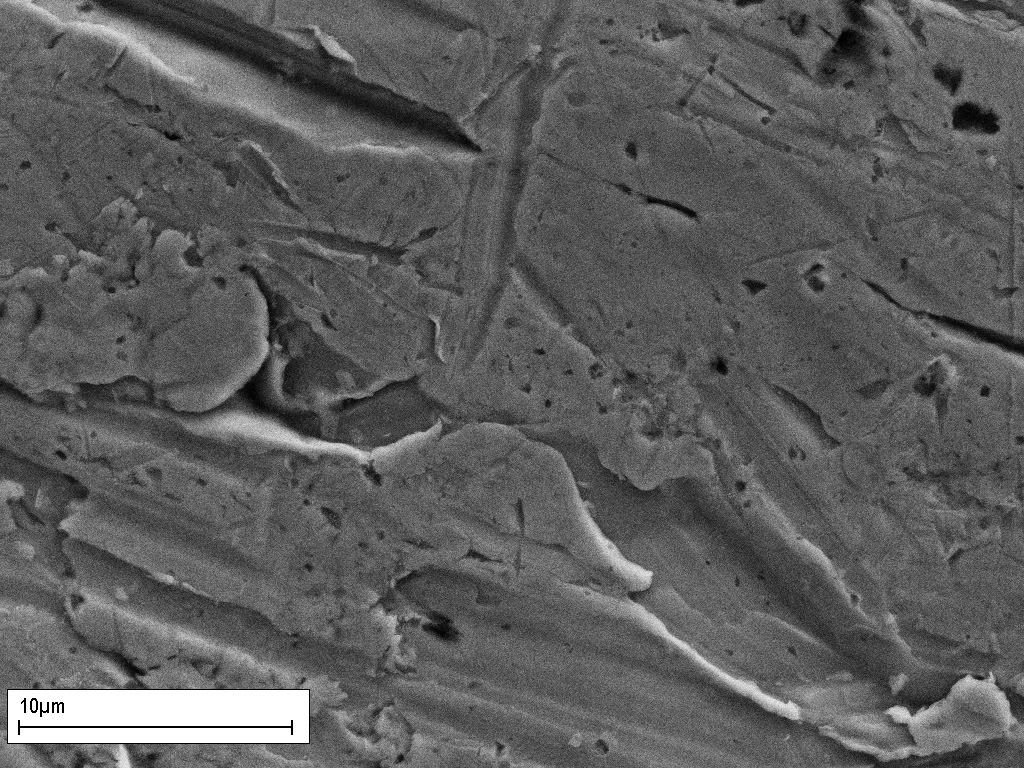

Surface Scan of Sample Fired at 900^oc for 90 minutes (x10000 magnifcation)

When looking at the surface hardening through tumbling, interestingly there didn't seem to be much correlation, other than the gains from increasing the firing intensity:

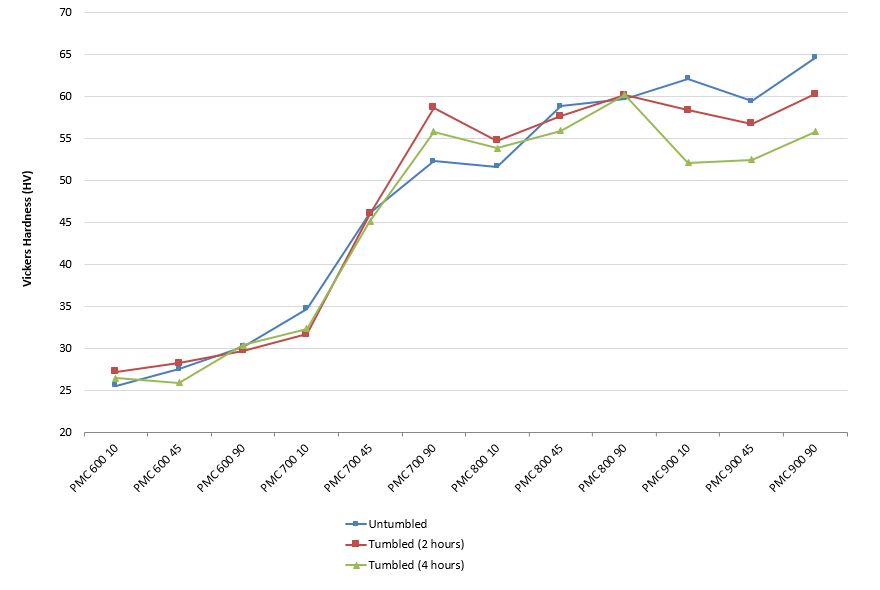

Vickers Hardness testing of unhardened, 2 hour tumbled and 4 hour tumbled across multiple firing programs

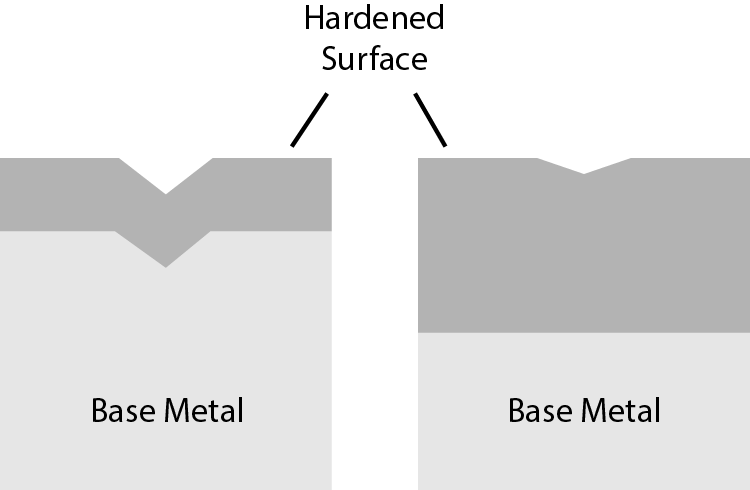

One of the potential reasons for this was that the hardened layer was too thin to have an effect to the hardness test i.e. the top layer may be hard, but as it is supported by malleable metal underneath, it deforms.
